Electric Winch, 24V 2000LBS Load Capacity Electric Steel Cable ATV Winch Kits with Handheld Controller, Electric Winch kit with Buckle Design Alloy Steel Hook for Towing Boat Off Road Trailer

Specification: Item Type: Electric Winch Kit Material: Alloy steel, stainless steel, copper Technical Parameter: Rated Tension: Approx.907kg/2000lb Motor: 0.7kw/1.0hp Gear Ratio: 150 to 1 Transmission Mode: Planetary transmission Wire Rope Diameter: Approx.4mm/0.2in Wire Rope Length: Approx.6m/19.7ft Reel Size (Diameter x Length): Approx.31.5x72mm/1.24x2.8in Braking Device: Automatic brake Size(Length x Width x Height): Approx. 286x100x105mm/11.3x4x4.1in TensionSpeed Current 0Approx. 3.2m/10.5ft per minute8AApprox. 227kg/500lb Approx. 2.8m/9.2ft per minute30AApprox. 454kg/1000lb Approx. 2.2m/7.2ft per minute60AApprox. 680kg/1500lb Approx. 1.6m/5.2ft per minute90AApprox. 907kg/2000lbApprox. 0.9m/2.9ft per minute120ALayerRated TensionWire Rope Length on Reel1Approx. 907kg/2000lbApprox. 1.8m/5.9ft2Approx. 740kg/1630lbApprox. 2.5m/8.2ft3Approx. 627kg/1380lbApprox. 4.0m/13.1ft4Approx. 540kg/1190lbApprox. 6.5m/21.3ft5Approx. 477kg/1050lbApprox. 9.2m/30.0ft Package List: 1 x Electric Winch 1 x Controller 2 x Screw 2 x Nut 2 x Washer 1 x Manual

• 【PREMIUM COPPER MOTOR AND COPPER CORE TERMINAL】High performance 24V pure copper can provide stronger pulling power, which will generate good power and won't overeat the battery power. And the electric winch adopts copper core terminal, it is not easy to corrode compared with iron terminal and has good conductivity.

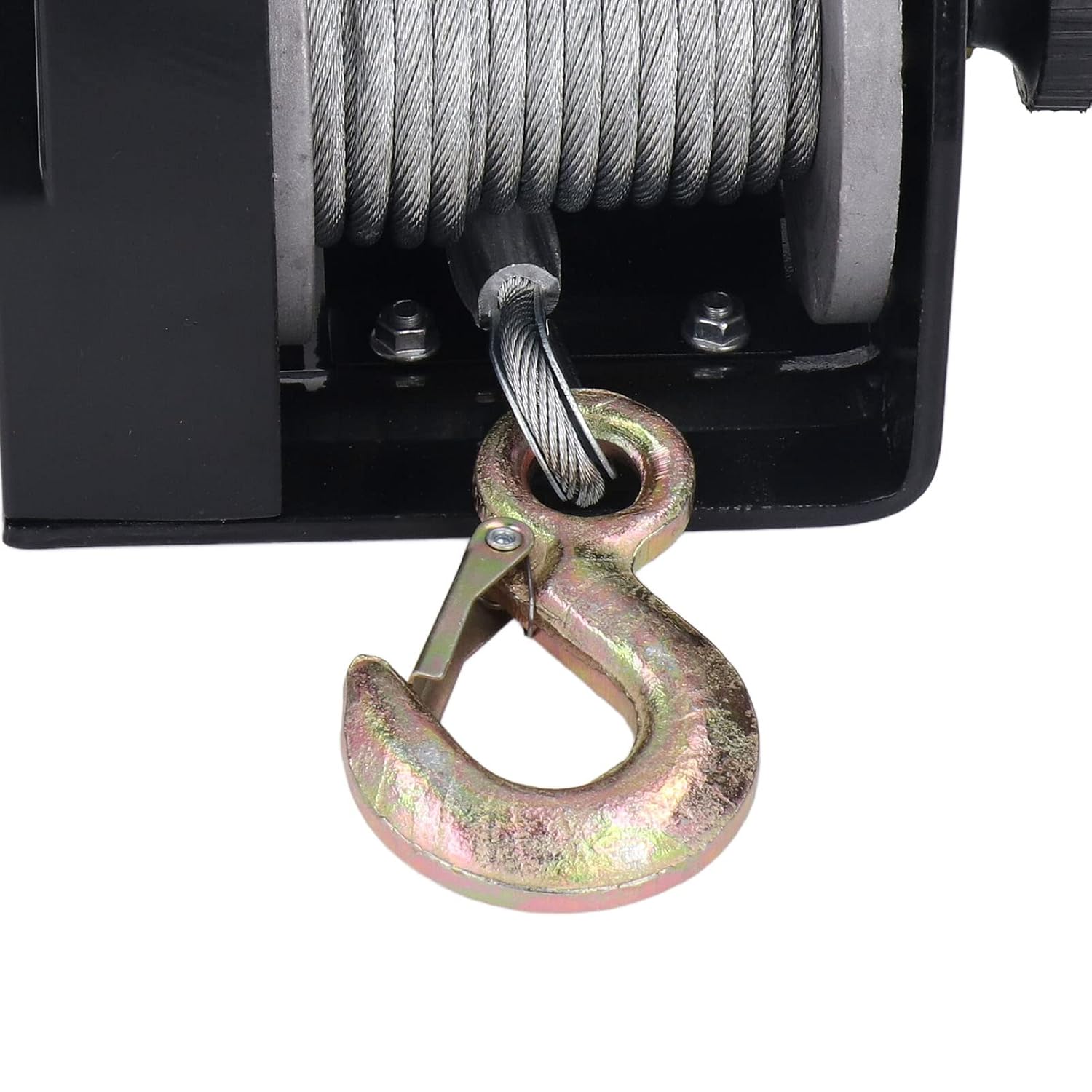

• 【DURABLE STEEL ROPE AND ALLOY STEEL HOOK】The towing winch adopts steel wire rope, which is wound in multiple strands. It has sufficient strength, wear and durability. The alloy steel hook has strong tensile strength, and the external is not easy to rust, the buckle design prevents the hook from slipping off hook.
• 【WIDE APPLICATIONS】Our ATV/UTV winch has a 150:1 reduction ratio, can withstand strong pressure. It provides 2000LBS of rated capacity line pull with smooth and efficient operation. Special designed for ATV, UTV, cars, trucks, modified vehicles and multiple purpose utility vehicles. It is practical and convenient for use.
• 【CAUTIONS】Do not objects vertically, the winch can only be used horizontally. On the winch reel, the wire rope winding shall not be less than 5 turns. The wire rope end fasteners cannot bear the full load. Do not over install, more than half of the load capacity, we recommend using the optional pulley to double the wire rope.
